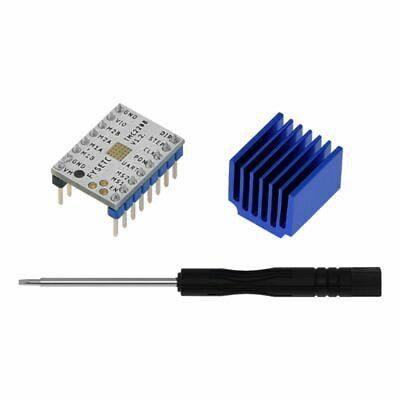

driver điều khiển động cơ bước stepper motor TMC2208 V2.0
tích hợp các loại board máy in 3d, cnc mini, laser
thông số kỹ thuật:
TMC2208 V2.0 Driver: TMC2208 is single-axis stepper motor drive chip,continuous drive current 1.4A,peak current 2A,voltage range 4.75V-36V,256 subdivision.
Heat Sink: With heat sink effeciently work in heat dissipation,practicaly for prolong the service time of the driver.
Easy to Use: Use the standard step / dir interface,can replace the original TMC2100 and reduce heat generation,especially for the 3D printing market.
Major Features: UART configuration interface,CoolStep current dynamic adjustment technology,dcStep,stallGuard2 stall detection technology,can save 70% of the energy.
Ultra-Quiet: TMC2208 is an ultra-quiet two-phase stepper motor driver chip,because the stealthChop2 ultra-quiet technology.
Specifications:
Material: Mental + Plastic
Model: Stepper Motor Driver TMC2208
Microsteps: Up to 1/256
MicroPlyer: 1/256
Logic Voltage (VIO): 3-5V
Motor Voltage (VM): 4.75-36V
Drive Current: 1.4A
Motor Phase Current: 1.2A RMS, 2.0A Peak
Power: 5W
Item Size: 20.3x14.9x11.5mm / 0.8x0.6x0.5in
